Å tegne en kloss med JOGL

Minimal version | Bruk av mus | Bruk av dialogelementer

Hva

Uttegning av en klosser.

Vi skal tegne ut en kloss med og uten interaksjon.

OpenGL har i prinsipp ikke noe apparat for å handtere geometriske figurer. Noen slike finnes i glu-biblioteket (quadricene), men vi må være forberedte på selv å lage funksjoner som tegner ut ulike romfigurer. En kloss er nyttig å ha, så vi lager en klossfunksjon. Du kan betrakte dette som en nyttig øvelse i å konstruere uttegningsrutiner. Utgangspunktet er følgende figur som viser en kloss i utbrettet tilstand

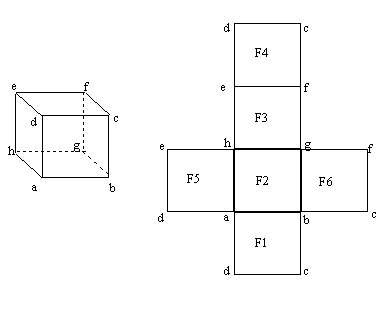

kloss

Vi må tegne ut de 6 flatene F1..F6. Vi må passe på at vi holder styr på hva som er forsiden ( front ) og hva som er baksiden (back) på flatene. OpenGL skiller mellom dette og vi kan blant annet tildele ulike materialegenskaper til forsiden og baksiden. I dette tilfellet skal vi tegne en lukket boks, og konsentrerer oss om utsiden. Vi må være systematiske under uttegningen og vi bestemmer oss for at vi vil tegne hver flate slik at vi angir punktene med klokka, når vi betrakter flaten utenfra.

Da er flatene beskrevet slik:

F1:	adcb	F4:	fcde
F2.	abgh	F5:	ahed
F3:	gfeh	F6:	bcfg

Vi må bestemme oss for hvordan vi skal forholde oss til klossens størrelse.

Vi kan enten la klossens dimensjoner og plassering inngå som parametrre til en kloss-funksjon. I så fall vil det kanskje være naturlig å velge et punkt, og utstrekningen i x-, y- og z-retningen som parametre. Dette vil gjøre rotasjon vanskelig.

Vi velger den siste strategien og bestemmer oss for å legge origo i a, x-aksen langs ab, y-aksen langs ah og z-aksen langs ad. Punktkoordinatene blir:

a:	0,0,0	e:	1,0,1
b:	0,1,0	f:	1,1,1
c:	0,1,1	g:	1,1,0
d:	0,0,1	h:	1,0,0

Vi pakker uttegningen inn i enklasse så vi kan gjenbruke den enkelt:

public class oneBox
{
    static void drawMe(GL gl)
    {
      /* draws the sides of a unit cube (0,0,0)-(1,1,1) */
      gl.glBegin(GL.GL_POLYGON);/* f1: front */
        gl.glNormal3f(-1.0f,0.0f,0.0f);
        gl.glVertex3f(0.0f,0.0f,0.0f);
        gl.glVertex3f(0.0f,0.0f,1.0f);
        gl.glVertex3f(1.0f,0.0f,1.0f);
        gl.glVertex3f(1.0f,0.0f,0.0f);
      gl.glEnd();
      gl.glBegin(GL.GL_POLYGON);/* f2: bottom */
        gl.glNormal3f(0.0f,0.0f,-1.0f);
        gl.glVertex3f(0.0f,0.0f,0.0f);
        gl.glVertex3f(1.0f,0.0f,0.0f);
        gl.glVertex3f(1.0f,1.0f,0.0f);
        gl.glVertex3f(0.0f,1.0f,0.0f);
      gl.glEnd();
      gl.glBegin(GL.GL_POLYGON);/* f3:back */
        gl.glNormal3f(1.0f,0.0f,0.0f);
        gl.glVertex3f(1.0f,1.0f,0.0f);
        gl.glVertex3f(1.0f,1.0f,1.0f);
        gl.glVertex3f(0.0f,1.0f,1.0f);
        gl.glVertex3f(0.0f,1.0f,0.0f);
      gl.glEnd();
      gl.glBegin(GL.GL_POLYGON);/* f4: top */
        gl.glNormal3f(0.0f,0.0f,1.0f);
        gl.glVertex3f(1.0f,1.0f,1.0f);
        gl.glVertex3f(1.0f,0.0f,1.0f);
        gl.glVertex3f(0.0f,0.0f,1.0f);
        gl.glVertex3f(0.0f,1.0f,1.0f);
      gl.glEnd();
      gl.glBegin(GL.GL_POLYGON);/* f5: left */
        gl.glNormal3f(0.0f,1.0f,0.0f);
        gl.glVertex3f(0.0f,0.0f,0.0f);
        gl.glVertex3f(0.0f,1.0f,0.0f);
        gl.glVertex3f(0.0f,1.0f,1.0f);
        gl.glVertex3f(0.0f,0.0f,1.0f);
      gl.glEnd();
      gl.glBegin(GL.GL_POLYGON);/* f6: right */
        gl.glNormal3f(0.0f,-1.0f,0.0f);
        gl.glVertex3f(1.0f,0.0f,0.0f);
        gl.glVertex3f(1.0f,0.0f,1.0f);
        gl.glVertex3f(1.0f,1.0f,1.0f);
        gl.glVertex3f(1.0f,1.0f,0.0f);
      gl.glEnd();
    }
}

Minimal version

Vi lager et minimalt program uten interaksjon. Urtgangspunktet er NetBeans javaproject: JOGL Application.

Den komplette koden i den eneste kodefila (foruten oneBox) er:

package box1;
import com.sun.opengl.util.Animator;
import java.awt.Frame;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
import javax.media.opengl.GL;
import javax.media.opengl.GLAutoDrawable;
import javax.media.opengl.GLCanvas;
import javax.media.opengl.GLEventListener;
import javax.media.opengl.glu.GLU;
/**
 * Box1.java
 * author: BS
 *
 */
public class Box1 implements GLEventListener
{
    public static void main(String[] args)
    {
        Frame frame = new Frame("Showing a box");
        GLCanvas canvas = new GLCanvas();
        canvas.addGLEventListener(new Box1());
        frame.add(canvas);
        frame.setSize(640, 480);
        final Animator animator = new Animator(canvas);
        frame.addWindowListener(new WindowAdapter() {
            @Override
            public void windowClosing(WindowEvent e) {
                // Run this on another thread than the AWT event queue to
                // make sure the call to Animator.stop() completes before
                // exiting
                new Thread(new Runnable() {
                    public void run() {
                        animator.stop();
                        System.exit(0);
                    }
                }).start();
            }
        });
        // Center frame
        frame.setLocationRelativeTo(null);
        frame.setVisible(true);
        animator.start();
    }
    public void init(GLAutoDrawable drawable)
    {
        GL gl = drawable.getGL();
        // Set backgroundcolor and shading mode
        gl.glClearColor(1.0f, 1.0f, 1.0f, 0.0f);
        gl.glShadeModel(GL.GL_FLAT);
        // give me some light
        float ambient[] = {1.0f,1.0f,1.0f,1.0f };
        float diffuse[] = {1.0f,1.0f,1.0f,1.0f };
        float specular[]= {0.2f,1.0f,0.2f,1.0f};
        float position[] = {20.0f,30.0f,20.0f,0.0f };
        gl.glLightfv(GL.GL_LIGHT0, GL.GL_AMBIENT,ambient,0);
        gl.glLightfv(GL.GL_LIGHT0, GL.GL_DIFFUSE, diffuse,0);
        gl.glLightfv(GL.GL_LIGHT0, GL.GL_POSITION, position,0);
        // and some green material
        float amb[]={0.3f,0.9f,0.3f,1.0f};
        float diff[]={0.3f,1.0f,0.3f,1.0f};
        gl.glMaterialfv(GL.GL_FRONT,GL.GL_AMBIENT,amb,0);
        gl.glMaterialfv(GL.GL_FRONT,GL.GL_DIFFUSE,diff,0);
        gl.glMaterialfv(GL.GL_FRONT,GL.GL_SPECULAR, specular, 0);

        gl.glEnable(GL.GL_LIGHTING);
        gl.glEnable(GL.GL_LIGHT0);
        gl.glEnable(GL.GL_DEPTH_TEST);
        gl.glEnable(GL.GL_NORMALIZE);
    }
    public void reshape(GLAutoDrawable drawable,
                        int x, int y, int width, int height)
    {
        GL gl = drawable.getGL();
        GLU glu = new GLU();
        if (height <= 0) // no divide by zero
            height = 1;
        // keep ratio
        final float h = (float) width / (float) height;
        gl.glViewport(0, 0, width, height);
        gl.glMatrixMode(GL.GL_PROJECTION);
        gl.glLoadIdentity();
        glu.gluPerspective(45.0f, h, 1.0, 20.0);
        gl.glMatrixMode(GL.GL_MODELVIEW);
        gl.glLoadIdentity();
    }
    public void display(GLAutoDrawable drawable)
    {
        GL gl = drawable.getGL();
        GLU glu = new GLU(); // needed for lookat
        // Clear the drawing area
        gl.glClear(GL.GL_COLOR_BUFFER_BIT | GL.GL_DEPTH_BUFFER_BIT);
        // Reset the current matrix to the "identity"
        gl.glLoadIdentity();
        glu.gluLookAt(4,4,4,  // eye pos
                     0,0,0,   // look at
                     0,0,1);  // up

        gl.glRotatef(50.0f, 0.0f, 0.0f, 1.0f);
        gl.glRotatef(40.0f, 1.0f, 0.0f, 0.0f);
        oneBox.drawMe(gl);
        gl.glFlush();
    }
    public void displayChanged(GLAutoDrawable drawable,
                              boolean modeChanged, boolean deviceChanged)
    { }
}

Bruk av mus

Vi introduserer interaksjon ved å peke og dra med musa på tegningen Vi bruker det samme utgangspunktet med legger til MouseListener og MouseMotionListener.

Den komplette koden i den eneste kodefila (foruten oneBox) er:

package box2;
import com.sun.opengl.util.Animator;
import java.awt.Dimension;
import java.awt.Frame;
import java.awt.event.MouseEvent;
import java.awt.event.MouseListener;
import java.awt.event.MouseMotionListener;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;
import javax.media.opengl.GL;
import javax.media.opengl.GLAutoDrawable;
import javax.media.opengl.GLCanvas;
import javax.media.opengl.GLEventListener;
import javax.media.opengl.glu.GLU;

/**
 * Box2.java
 * author: BS
 *
 */
public class Box2 implements GLEventListener,
                             MouseListener,
                             MouseMotionListener
{
    public static void main(String[] args) {
        Frame frame = new Frame("Simple JOGL Application");
        GLCanvas canvas = new GLCanvas();
        canvas.addGLEventListener(new Box2());
        frame.add(canvas);
        frame.setSize(640, 480);
        final Animator animator = new Animator(canvas);
        frame.addWindowListener(new WindowAdapter() {
            @Override
            public void windowClosing(WindowEvent e) {
                // Run this on another thread than the AWT event queue to
                // make sure the call to Animator.stop() completes before
                // exiting
                new Thread(new Runnable() {
                    public void run() {
                        animator.stop();
                        System.exit(0);
                    }
                }).start();
            }
        });
        // Center frame
        frame.setLocationRelativeTo(null);
        frame.setVisible(true);
        animator.start();
    }
    // rotating the scene
    private float view_rotx = 20.0f;
    private float view_roty = 30.0f;
    // remember last mouse position
    private int oldMouseX;
    private int oldMouseY;
    public void init(GLAutoDrawable drawable)
    {
        GL gl = drawable.getGL();
        // Set backgroundcolor and shading mode
        gl.glClearColor(1.0f, 1.0f, 1.0f, 0.0f);
        gl.glShadeModel(GL.GL_FLAT);
        // give me some light
        float ambient[] = {1.0f,1.0f,1.0f,1.0f };
        float diffuse[] = {1.0f,1.0f,1.0f,1.0f };
        float specular[]= {0.2f,1.0f,0.2f,1.0f};
        float position[] = {20.0f,30.0f,20.0f,0.0f };
        gl.glLightfv(GL.GL_LIGHT0, GL.GL_AMBIENT,ambient,0);
        gl.glLightfv(GL.GL_LIGHT0, GL.GL_DIFFUSE, diffuse,0);
        gl.glLightfv(GL.GL_LIGHT0, GL.GL_POSITION, position,0);
        gl.glMaterialfv(GL.GL_FRONT,GL.GL_SPECULAR, specular, 0);
        // and some red material
        float[] mambient ={ 0.1745f, 0.01175f, 0.01175f, 0.55f };
        float[] mdiffuse ={0.61424f, 0.04136f, 0.04136f, 0.55f };
        float[] mspecular ={0.727811f, 0.626959f, 0.626959f, 0.55f };
        float mshine =76.8f ;
        gl.glMaterialfv(GL.GL_FRONT,GL.GL_AMBIENT,mambient,0);
        gl.glMaterialfv(GL.GL_FRONT,GL.GL_DIFFUSE,mdiffuse,0);
        gl.glMaterialfv(GL.GL_FRONT,GL.GL_SPECULAR,mspecular, 0);
        gl.glMaterialf (GL.GL_FRONT,GL.GL_SHININESS,mshine);
        gl.glEnable(GL.GL_LIGHTING);
        gl.glEnable(GL.GL_LIGHT0);
        gl.glEnable(GL.GL_DEPTH_TEST);
        gl.glEnable(GL.GL_NORMALIZE);
        drawable.addMouseListener(this);
        drawable.addMouseMotionListener(this);
    }
    public void reshape(GLAutoDrawable drawable,
                        int x, int y, int width, int height)
    {
        GL gl = drawable.getGL();
        GLU glu = new GLU();
        if (height <= 0) // no divide by zero
            height = 1;
        // keep ratio
        final float h = (float) width / (float) height;
        gl.glViewport(0, 0, width, height);
        gl.glMatrixMode(GL.GL_PROJECTION);
        gl.glLoadIdentity();
        glu.gluPerspective(45.0f, h, 1.0, 20.0);
        gl.glMatrixMode(GL.GL_MODELVIEW);
        gl.glLoadIdentity();
    }
    public void display(GLAutoDrawable drawable)
    {
        GL gl = drawable.getGL();
        GLU glu = new GLU(); // needed for lookat
        // Clear the drawing area
        gl.glClear(GL.GL_COLOR_BUFFER_BIT | GL.GL_DEPTH_BUFFER_BIT);
        // Reset the current matrix to the "identity"
        gl.glLoadIdentity();
        glu.gluLookAt(4,4,4,  // eye pos
                     0,0,0,   // look at
                     0,0,1);  // up

        gl.glTranslatef(0.5f, 0.5f, 0.5f);
        gl.glRotatef(view_rotx, 1.0f, 0.0f, 0.0f);
        gl.glRotatef(view_roty, 0.0f, 1.0f, 0.0f);
        gl.glTranslatef(-0.5f, -0.5f, -0.5f);
        oneBox.drawMe(gl);
        gl.glFlush();
    }
    public void displayChanged(GLAutoDrawable drawable,
                              boolean modeChanged, boolean deviceChanged)
    { }

    public void mouseClicked(MouseEvent e) {}
    public void mouseEntered(MouseEvent e) {}
    public void mouseExited(MouseEvent e) {}
    public void mouseReleased(MouseEvent e) { }
    public void mousePressed(MouseEvent e) {
        oldMouseX = e.getX();
        oldMouseY = e.getY();
    }
    public void mouseDragged(MouseEvent e) {
        int x = e.getX();
        int y = e.getY();
        Dimension size = e.getComponent().getSize();
        float thetaY = 360.0f * ( (float)(x-oldMouseX)/(float)size.width);
        float thetaX = 360.0f * ( (float)(oldMouseY-y)/(float)size.height);
        oldMouseX = x;
        oldMouseY = y;
        view_rotx += thetaX;
        view_roty += thetaY;
    }
    public void mouseMoved(MouseEvent e) {}
}

Bruk av dialogelementer

Vi introdusrere interaksjon via GUI-elementer, slidere, i vinduet. Dette prosjektet er bygd med utgangspunkt i NetBeans javaproject: JOGL Application (Form Designer, GL_JPanel)

Delere av hovedklassen:

public class Box3 extends JFrame {
    private Animator animator;
    GLRenderer glr;
    /** Creates new form MainFrame */
    public Box3() {
        initComponents();
        setTitle("Simple JOGL Application");
        glr=new GLRenderer();
        panel.addGLEventListener(glr);
        animator = new Animator(panel);
        animator.start();
        this.addWindowListener(new WindowAdapter() {
            @Override
            public void windowClosing(WindowEvent e) {
                // Run this on another thread than the AWT event queue to
                // make sure the call to Animator.stop() completes before
                // exiting
                new Thread(new Runnable() {
                    public void run() {
                        animator.stop();
                        System.exit(0);
                    }
                }).start();
            }
        });
    }
    @Override
    public void setVisible(boolean show){
        if(!show)
            animator.stop();
        super.setVisible(show);
        if(!show)
            animator.start();
    }

Den komplette koden i GLrenderer:

package box3;
import com.sun.opengl.util.GLUT;
import javax.media.opengl.GL;
import javax.media.opengl.GLAutoDrawable;
import javax.media.opengl.GLEventListener;
import javax.media.opengl.glu.GLU;

/**
 * GLRenderer.java
 * author: bs
 */
public class GLRenderer implements GLEventListener {
    private float view_rotx=0;
    private float view_roty=0;
    public void init(GLAutoDrawable drawable) {
        GL gl = drawable.getGL();
        // Set backgroundcolor and shading mode
        gl.glClearColor(1.0f, 1.0f, 1.0f, 0.0f);
        gl.glShadeModel(GL.GL_FLAT);
       // give me some light
        float ambient[] = {1.0f,1.0f,1.0f,1.0f };
        float diffuse[] = {1.0f,1.0f,1.0f,1.0f };
        float specular[]= {0.2f,1.0f,0.2f,1.0f};
        float position[] = {20.0f,30.0f,20.0f,0.0f };
        gl.glLightfv(GL.GL_LIGHT0, GL.GL_AMBIENT,ambient,0);
        gl.glLightfv(GL.GL_LIGHT0, GL.GL_DIFFUSE, diffuse,0);
        gl.glLightfv(GL.GL_LIGHT0, GL.GL_POSITION, position,0);
        gl.glMaterialfv(GL.GL_FRONT,GL.GL_SPECULAR, specular, 0);
        // and some red material
        float[] mambient ={ 0.1745f, 0.01175f, 0.01175f, 0.55f };
        float[] mdiffuse ={0.61424f, 0.04136f, 0.04136f, 0.55f };
        float[] mspecular ={0.727811f, 0.626959f, 0.626959f, 0.55f };
        float mshine =76.8f ;
        gl.glMaterialfv(GL.GL_FRONT,GL.GL_AMBIENT,mambient,0);
        gl.glMaterialfv(GL.GL_FRONT,GL.GL_DIFFUSE,mdiffuse,0);
        gl.glMaterialfv(GL.GL_FRONT,GL.GL_SPECULAR,mspecular, 0);
        gl.glMaterialf (GL.GL_FRONT,GL.GL_SHININESS,mshine);

        gl.glEnable(GL.GL_LIGHTING);
        gl.glEnable(GL.GL_LIGHT0);
        gl.glEnable(GL.GL_DEPTH_TEST);
        gl.glEnable(GL.GL_NORMALIZE);
        gl.setSwapInterval(1);
    }
    public void reshape(GLAutoDrawable drawable,
                       int x, int y, int width, int height)
    {
         GL gl = drawable.getGL();
        GLU glu = new GLU();
        if (height <= 0) // no divide by zero
            height = 1;
        // keep ratio
        final float h = (float) width / (float) height;
        gl.glViewport(0, 0, width, height);
        gl.glMatrixMode(GL.GL_PROJECTION);
        gl.glLoadIdentity();
        glu.gluPerspective(45.0f, h, 1.0, 20.0);
        gl.glMatrixMode(GL.GL_MODELVIEW);
        gl.glLoadIdentity();
    }
    public void display(GLAutoDrawable drawable) {
        GL gl = drawable.getGL();
        GLU glu = new GLU(); // needed for lookat
        // Clear the drawing area
        gl.glClear(GL.GL_COLOR_BUFFER_BIT | GL.GL_DEPTH_BUFFER_BIT);
        // Reset the current matrix to the "identity"
        gl.glLoadIdentity();
        glu.gluLookAt(3,3,3,  // eye pos
                     0,0,0,   // look at
                     0,0,1);  // up

        gl.glTranslatef(0.5f, 0.5f, 0.5f);
        gl.glRotatef(view_rotx, 1.0f, 0.0f, 0.0f);
        gl.glRotatef(view_roty, 0.0f, 1.0f, 0.0f);
        gl.glTranslatef(-0.5f, -0.5f, -0.5f);
        oneBox.drawMe(gl);
        // draw ateapot
        /*
         GLUT glut=new GLUT();
        glut.glutSolidTeapot(1.0);
         */
        gl.glFlush();
    }
    public void displayChanged(GLAutoDrawable drawable,
                              boolean modeChanged, boolean deviceChanged)
    {
    }

    public void setRotation(float xrot, float yrot)
    {
        view_rotx=xrot;
        view_roty=yrot;
    }
}

Referanser

Minimal(JOGL/Netbeans): https://svn.hiof.no/svn/psource/JOGL/box1
Mousing(JOGL/Netbeans): https://svn.hiof.no/svn/psource/JOGL/box2
Handles(JOGL/Netbeans): https://svn.hiof.no/svn/psource/JOGL/box3

Vedlikehold

B.Stenseth, april 2010

(Velkommen) Å tegne:>Kloss (4 klosser)
