Mobile messaging
started with Short Messaging Service (SMS). Multimedia Messaging Service (MMS) was
recently introduced, allowing users to send and receive messages composed of
text, audio, images and even movie clips. In this paper, we propose a new step
in the evolution of mobile messaging by introducing the Annotated Multimedia
Messaging Service (AMMS). AMMS is in short an MMS document augmented with
metadata that facilitates efficient structuring, storage, search and retrieval
of mobile media content. We currently restrict the metadata to describe time
and place, and show how to include this information in an MMS document by using
the existing specification without changes. We suggest some applications that
may be realized on the foundations of this simple, yet powerful, concept, both
in the personal market and in the professional domain. A prototype framework called

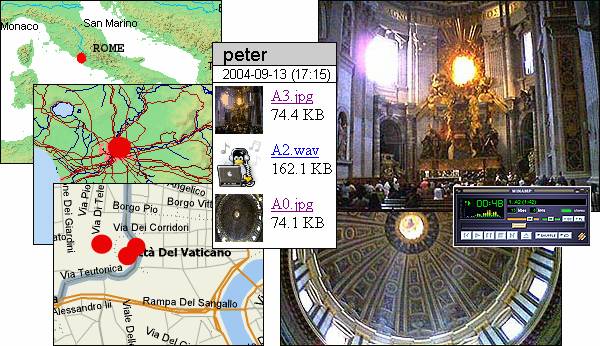

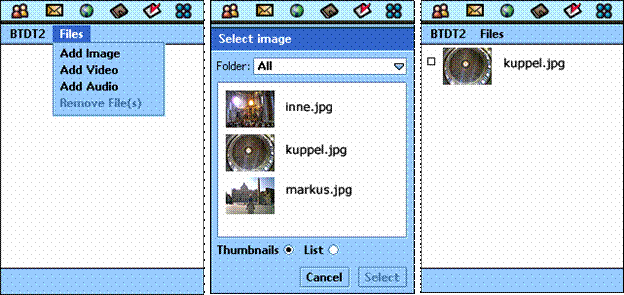

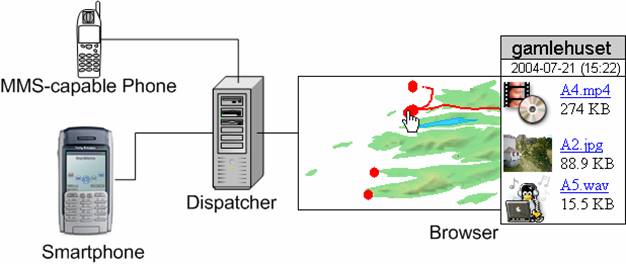

Been-There-Done-That has been implemented, where users can generate AMMS
documents and upload them to an Internet server. The messages are accessible
through a web based map application.
Keywords: Annotated
Multimedia Messaging Service, Metadata, Mobile Content Creation, Mobile
Positioning, Smart Phones, Web Map Service.
I.
Introduction
The mobile phone has
become an integral part of everyday life in many countries. In 2002, the number of cellular subscribers in Taiwan reached 22.6
million, meaning that there is more than one handset for each person (Possi,
2004). From being simple voice call devices, cell
phones have developed into advanced multimedia communication tools. High-end
mobile phones, often called smart phones, have the storage and processing
capabilities like a five years old desktop computer (P900, 2003). Smart phones
run full-blown operating systems facilitating development of a multitude of
third party solutions, such as games and infotainment applications. Protocols
and standards facilitate access to Internet services, and enable the users to
roam freely, independent of local operators. At last, but not least, contemporary
handsets offer a range of multimedia features, like built-in cameras, camcorders
and audio recorders.
The Short Messaging
Service (SMS), which allows subscribers to send and receive short textual
messages, was first demonstrated in 1992 (Karuturi, 2002) and was after a while embraced by the
users and ignited an explosion in network traffic. In 2002, approximately
30 billion SMS messages were sent globally each month (GSM, 2004). The SMS protocol was later extended to include transfer of
small pictures, sounds and animations. This version of SMS is known as Enhanced
Messaging Service (EMS).
SMS and EMS were originally
designed for use in Global System for Mobile Communications (GSM) networks,
also referred to as second-generation (2G) mobile networks. It is currently the
most widely used system, and the bandwidth is around 10 kbps. The specification
of a faster network system, General Packet Radio Service (GPRS), was released
in 1997 as an additional GSM service. The speed is typically 150 kbps, or more
than 250 kbps in the case of the enhanced GPRS service (EDGE). GPRS is available
from most GSM operators, and is often characterized as 2.5G. The third-generation
networks (3G) offer a significant jump in bandwidth, ranging from 150 kbps when
driving a car and up to two mbps for stationary usage (Oney, 2001). 3G networks
were first rolled out in Japan 2001 (CNN, 2001), and presently there are more
than 132 million 3G subscribers worldwide (UMTS, 2004).
The advent of faster
networks, together with the boost in capabilities and performance of handsets,
led to the specification of the Multimedia Messaging Service (MMS). MMS is a
natural evolution from text messaging, and makes it possible to exchange messages
with rich media content such as graphics, images, audio and video (3GPP, 2003).
An MMS message has a number of slides and may be viewed as a “PowerPoint-style”
presentation on the mobile device. The first MMS service was launched in Norway
in 2002 (ITU, 2004). MMS usage is growing fast. In second quarter of 2004, 20
million MMS messages were sent in Norway, or approximately five messages for
each inhabitant, as opposed to 6 million in first quarter (VG, 2004).
Most MMS applications
assume that the users are producing simple MMS documents, like a single image
or a single video clip, optionally followed by a text note. Typically, the users
are invited to take advantage of some central server, offering functionality
for storage, structuring and presentation of mobile snapshots or small video
clips. An example of such “your personal mobile album on the web” is the award-winning
Foneblog from NewBay (NewBay, 2003). The majority of these types of services
are structuring the committed MMS documents according to one single metadata
property, however perhaps the most significant one; namely the time of capture.
In this paper, we take advantage of the new and coming generations of mobile handsets, high-speed networks and open formats and standards. Our main contribution is a simple enhancement of the MMS specification (CMG, 2002) which we have termed Annotated Multimedia Messaging Service (AMMS). We review some of the previous work on multimedia and metadata relevant to MMS applications in Section II. The specification of the Annotated Multimedia Messaging Service is given in Section III. We then outline some scenarios based on the AMMS concept. In Section V we describe a proof-of-concept implementation called “Been-There-Done-That”, and finally give some concluding remarks.
II. Mobile
Multimedia and Metadata
Metadata is essentially additional
information about some artifact. Metadata facilitates organizing, searching,
browsing, and sharing, see for instance (Naaman, et al., 2004a), where the role
of metadata in searching large image repositories is investigated. Metadata
management has for a long time been an important aspect of the work in museums,
libraries and archives. The rise of the World Wide Web has added another
important arena for metadata management. The problems of searching and browsing
the massive amounts of information on Internet are the main focus in the large
field of research and development referred to as the “The Semantic Web”. The
cornerstone of this effort is the Resource Description Framework (RDF), in essence a tool for describing and interchanging metadata about
web resources. RDF is frequently used together with a multipurpose, general
metadata specification called The Dublin Core Metadata Initiative (DCMI, 2003).
For an overview of the semantic web, RDF, DCMI and related topics, see (Miller,
2004). The semantic web relies heavily on the use of Extensible Markup Language
(XML) as the underlying metalanguage.
The authors are of the opinion that consistent
use of metadata is a key to successful deployment of future MMS applications. One
of the reasons for this is that it is far more difficult to handle multimedia
content than traditional (well-)structured information such as text-only data. However,
little, if any at all, attention has been paid to MMS metadata management. As a
backdrop for our proposed specification of annotated multimedia messages, we
outline some relevant specifications and then review some work concerning generation
of media metadata.
Many metadata standards
and frameworks may be applied to multimedia. However, most of them are designed
for use in museum collections, libraries and archives of analogue media items.
In the following, we briefly outline a few research and standardization initiatives supporting digital media metadata.
Not surprisingly, the major bulk of media
metadata work seems to be applied to still images, as for instance the “DIG35
Specification” from International Imaging Industry Association (I3A, 2001).
This standard defines a flexible XML based framework to describe location, date
and time of capture, focus distance, light levels, GPS location, image type,
copyright, subject matter, etc.
Another large area of metadata research concerns
audio and video, where the major projects are conducted under the Moving Picture Experts Group (MPEG) umbrella. MPEG is a
working group of ISO/IEC in charge of the development of standards for coded
representation of digital audio and video. Their MPEG-7 specification, “Multimedia content description interface” (ISO/IEC, 2002),
offers a rich XML vocabulary for providing metadata covering both content and
context. MPEG-7 is an approved ISO standard. It is highly complex, and it is difficult
to find examples of real-life use. Another video metadata specification, far
more simple in use than MPEG-7, is the “Dublin Core Application Profile for
Digital Video” from the Video Development Initiative (ViDe, 2001).
The above-mentioned
initiatives all target a single media type, and there are not many projects covering
mixed media. The MMS is indeed an example of mixed media, combining audio,
video, images and text. MMS uses a subset of Synchronized Multimedia
Integration Language (SMIL) as encoding and presentation (3GPP, 2003). SMIL is
an XML grammar similar to HTML. It is essentially a way of choreographing rich,
interactive multimedia content for real-time presentation over the web and over
low bandwidth connections (W3C, 2001).
SMIL comes in two flavors,
SMIL 1 and SMIL 2, the latter an extension of SMIL 1. Both versions offer
metadata capabilities. SMIL 1 has a meta element with two attributes, a name
and a content. There may be several meta elements in one document. The
element is generic in the sense that users may define their own metadata
properties. Each property has a corresponding meta element with a given
name/content pair. The following XML snippet states that there is a metadata
type termed “Creator”, and that the value of the type is “Mats”:
<meta name="creator" content="Mats"
/>
This is a very simplistic
way of modeling metadata, and it is not supporting interoperability. Without
detailed knowledge of the application that generated the SMIL document, it is impossible
for external components to treat the annotations properly. In addition, this is
an example of “bad” XML modeling. There is widespread agreement on not
using the attributes of the elements to carry essential information, but rather
embed it in the content of the elements.
SMIL 2 offers a more advanced metadata model.
In addition to the SMIL 1 meta element, there is also a metadata
element. This element is a container for well-structured information formatted
according to the Resource Description Framework (RDF) model and the element set
defined by the Dublin Core Metadata Initiative (DCMI). This enables a growing
number of Semantic Web based applications to read and “understand” the metadata
information.
It is one thing to find an appropriate metadata
specification or standard; another issue, perhaps a more difficult one, is to generate
the actual metadata. In traditional media collections, annotations are added
after the time of creation, and typically in an archiving context. For personal
media applications, such as private digital image collections, growing with
hundreds of entries each month, this might become an overwhelming and daunting
task.
Recent work has been
focusing on using time and location of capture as major metadata components for
digital images, see for instance (Naaman, et al., 2004b), where two systems for
metadata based browsing in large photo collections are compared. Two of these projects work with advanced frameworks for
semi-automatic metadata generation for digital images, the LOCALE system from
Stanford University, California (Naaman, et al., 2003), and the MMM (Mobile
Media Metadata) from Berkeley, California (Davis, et al., 2004). In the LOCALE
project, the users have digital cameras connected to GPS devices so that each image
is stamped with time and position. In addition, each snapshot is labeled with
an arbitrary string that the user may or may not fill in. When empty labeled
images are uploaded to the storage server, the system automatically assigns a
label based on other photographs taken in the same area. The MMM system manages
metadata for images from mobile camera phones. The initial annotations are
username, date, time and the cell ID retrieved from the GSM service provider.
Then the system searches a central storage server for images with “similar”
metadata, and suggests additional annotations. The process is iterative such
that the metadata may be refined in a user/system loop.
The major bulk of
research and development in media metadata management is focusing on the
personal market segment, typically snapshot collections. In addition, only
simple multimedia content is considered, the overwhelming majority being single
images. Work on complex multimedia documents, such as messages composed of
images, video clips, voice notes and text is non-existing in the literature, as
to the knowledge of the authors. Further, examples on work targeting
professional applications seem to be scarce.
III. Annotated
Multimedia Messaging Service
An MMS message is coded
by using a subset of SMIL (see Section II). In order to ensure interoperability
among different network operators and handset vendors, a group of major
companies has published a conformance document describing the subset of SMIL
allowed in MMS (CMG, et al., 2001). One of the optional components of an MMS
document is the meta element, as defined in the SMIL 1 specification. The
conformance document does not include the richer RDF based metadata module
in SMIL 2.
In this work, we restrict the metadata to
describe the most essential information, where and when. Several different technologies make it possible to retrieve
the position of a given cellular unit (Chan, 2003). There are reasons to
believe that all mobile phones in the near future will be location enabled. As
an example, the introduction of the enhanced 911 system (E911) implies that in
the near future, all US wireless carriers must provide precise location information
for all emergency calls from mobile phones (FCC, 2004).
We define an annotated multimedia message (AMMS)
as an MMS document augmented with spatiotemporal metadata. One of our design goals
is to take full advantage of existing MMS applications and services, and the
only way to do this is to make sure that the AMMS is fully compliant with the current
conformance document. As pointed out in Section II, the metadata capability of
SMIL 1 is inferior to SMIL 2, but to keep the AMMS conformant, our only option
is to use the meta element and its attributes to carry the necessary
spatiotemporal information. The three proposed meta elements are defined as
follows:
Name Content
time The time of the recording,
given in the same notation as used by existing e-mail applications.
place A text string describing the
place where the MMS was composed. This name may later be resolved through a
gazetteer service to an actual position.
position A set of one or more coordinate pairs
describing a point or a track somewhere in the world. Currently we assume
geographic coordinates and WGS84 datum. One or more white space characters
delimit each coordinate pair, and a comma separates each two coordinates.
An example of an AMMS
follows, where we have expanded the sample document from the MMS conformance
specification with spatiotemporal annotations:
<smil>
<head>
<meta name="time" content="Thu, 24
Jun 2004 13:37:00 +0200" />
<meta name="position"
content="59.00000,11.00000" />
<layout>
<root-layout width="352"
height="144" />
<region id="Image"
width="176" height="144" left="0"
top="0" />
<region id="Text"
width="176" height="144" left="176"
top="0" />
</layout>
</head>
<body>
<par dur="8000ms">
<img src="FirstImage.jpg"
region="Image" />
<text src="FirstText.txt"
region="Text" />
<audio src="FirstSound.amr" />
</par>
<par dur="7000ms">
...
</par>
</body>
</smil>
When embedding the
metadata as specified, any MMS compatible device may treat the AMMS as a
standard MMS, by just ignoring the additional meta elements. On the other hand,
all AMMS enabled applications must understand the metadata and be able to
process the spatiotemporal content.
We strongly recommend
that the next version of the MMS conformance document should include the SMIL 2
metadata module, which would bring MMS metadata management a significant step
forward.
IV.
AMMS Applications
Annotated multimedia
messages may be used in wide variety of application. We are of the opinion that
additional metadata, in particular spatiotemporal information, may lay the
foundation for novel and interesting usage. Up until now, MMS services have in
general targeted the private sphere, in particular picture messaging and mobile
gaming. However, by enhancing MMS messages with significant metadata, many
professionals might consider this as a useful tool in their daily work.
Apart from picture messaging,
i.e. when subscribers take a picture and upload it to a central server, the
majority of MMS applications pushes content to the users, like games and advertisements.
In the following overview of AMMS scenarios, we will focus on the user as a
content creator, rather than a content consumer.
Blogging
The
most obvious usage of the AMMS is as input to a web log. A web log is a
semi-interactive personal diary that a user keeps on his or her website. The
blog (as they are called in short form) is updated with small notes about what
goes on in that person’s life (Blogger, 2004). Recently the traditional blogs
have been extended to handle richer content by adding multimedia elements, as
outlined below.
Photo Blogs
A
photo blog builds on the same concept as a regular blog. The photo blog does
however put images in focus, and an entry in the blog is rather a single
photograph with comments. Photographer Emese Gaal (Gaal, 2001) hosts one
prominent example.
Moblogs
While
regular blogs usually are operated from a personal computer, there is a trend
to extend the blogging activity to include messages from mobile phones. The
main point is still the same; persons create posts about what happens in their
every day lives, take pictures of views and events that interest them and so
on. The main difference is that everything is operated from a cell phone, but the
blog is still viewed from a personal computer. The concept is not widespread at
the moment, but is apparently catching momentum. Nokia has developed a tool called
Lifeblog, a sort of a scrapbook used to keep track of photos, videos, text
message and other mobile media uploaded to a website (Nokia, 2004). Joi Ito maintains
an informal site about the status of mobile blogging (Ito, 2004). One (of many)
commercial actors in the field is New Bay Software with their award-winning
FoneBlog service (Newbay, 2003).
Location Blogs
The
natural evolution of blogs and the ever-increasing development efforts put into
these projects have resulted in location aware blogs. In addition to being able
to store multimedia content, they offer functionality for storing the location
of where the content was recorded. The JPEG image format makes it possible to
store the geographical coordinates of the moment of capture, provided manually
or by the device in real time. Several systems exploit this option, for
instance WWMX (Toyoma, et al., 2003) and WaveBlog (WaveMarket, 2003). In
addition a system called Blogmapper has been developed, which provides
additional location services to already existing blogs (Harlan, 2003).
AMMS Blogs
Obviously, the AMMS
concept may support advanced blogging applications, combining the functionality
of traditional blogs, moblogs and location blogs. In Section V, we present an
enhanced mobile blogging framework, called Been-There-Done-That.
Field
reports
While advanced blogging
mainly targets the personal market segment, it is easy to apply the AMMS concept
to various professional domains. A typical application area is field reporting.
We briefly outline two candidate cases.
Power line maintenance
Recently a prototype has
been presented where power line malfunctions are reported using a helicopter, a
PDA (Personal Digital Assistant) and a digital camera. The camera is transferring
images to the PDA, and a description of the situation is recorded using a
registration form on the PDA. Finally, the complete report is transmitted to
the headquarter using a GPRS enabled network (Langdahl, 2004).
In our opinion, this
procedure would be greatly simplified using the AMMS concept. First of all,
only one recording device would be needed, and the standardized AMMS message
would make it simpler to build a modular system, in particular at the
server/browser end. However, it would be necessary to extend our proposed
simple metadata capabilities to include error messages relevant to the power
line case. This could easily be achieved by using the SMIL 2 specification and
its RDF/DCMI extension (see Section II).
Biodiversity research
A group at Stanford University, California, has used a location blogging tool to
archive records of plants in the surroundings of the Rocky Mountain Biological Laboratory
(Garcia-Molina, et al., 2004). The browser uses a
wide range of metadata to facilitate easy access to the photographs of the
plants and their environment. However, the majority of the additional
information is added manually in retrospect, including the location. Clearly, a
more automated approach, for example by using the AMMS protocol, would improve
and simplify the registration procedure.
Where
R U
As an educated guess, a
large number of all mobile conversations contain one or two questions of the
type “Where are you?” By applying the AMMS principles, such questions could be
answered very precisely. Assume the recipient of a request takes a snapshot of
her surroundings, and then sends it as an AMMS to a “Where R U” server,
together with the calling number of the asking unit. Then the server would
retrieve the location and produce an appropriate image map with the help of a
WMS server (OGC, 2002). Then it would forward the map and the snapshots to the
person asking. Clearly, a map and an image (or more) of the location would, in
general, be much more informative than a verbal description.
Mobile
journalism
Journalists have
gradually entered the digital domain, and are now using digital cameras (stills
and video), digital audio recorders and digital communications such and GSM, GPRS
and WLAN. However, the current way of working is characterized by transferring
disparate and unsynchronized items covering the same event. Considering the
fact the capabilities of handheld devices soon will satisfy the newspaper (and
to some extent radio and television network) standards with regard to technical
quality; it is easy to image the mobile unit as the main, not to say the
single, tool for a field reporter. In fact, taking full advantage of the SMIL
capabilities, a news AMMS might provide a full story of an event, including the
location. When received at the news desk server, the story could be automatically
converted to fit various channels, such as conventional newspapers, online newspapers,
radio and television, and, of course, be accompanied with an informative map produced
by a WMS server.
Collaborative
mapping
While
most of today’s maps are generated and provided by central mapping authorities,
small groups of people or individuals see the need for a more “grass-root”
oriented mapping. Building and updating maps from a collection of GPS points
and annotations is a conceivable concept. Figure 1 shows
a map of the walkways in a park in Gävle, Sweden, generated by the experimental
Been-There-Done-That application presented in Section V.
Figure 1: Collaborative mapping
Another, and more
elaborated example, is the Amsterdam Real-Time project. During a two months
project, a number of Amsterdam citizens were equipped with portable devices

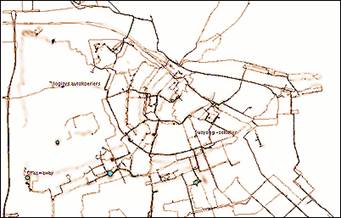

connected to GPS receivers, and their movements were traced (Figure 2):
“This way an ever-changing, very recent, and very subjective map of Amsterdam will come about” (Waag, 2002).
Figure 2: Amsterdam realtime (from Waag, 2002)
One of many
rationales for the community mapping approach is the fact that in some parts of
the world, it is difficult and/or expensive to obtain good and accurate
geospatial data. Collaborative mapping makes
it possible to generate highly customized maps, taking in account the specific
location and particular needs of the persons involved.
Mobile
games
One
of the major areas of large revenue expectations is mobile gaming. By adding
the spatiotemporal aspect, the expectations should grow even larger, in
particular if one does not restrict the domain to the large bulk of “shoot-and-kill”
applications. In the following, we briefly outline an application under
development by the Norwegian Automobile Association (NAF) together with a major
GIS vendor, Bravida Geomatikk (Høseggen, 2004). For a long time NAF has provided
their members with a “Michelin Guide” type book of maps and roadside
information like restaurants, tourist attractions, scenic routes etc.
Gradually, the content of this guide has become digitally available, and the
organization wants to exploit the digital content beyond the services offered
in the hardcopy version. One proposal is to design a suite of “back seat
games”, mainly targeting children in various ages during longer car trips. The
idea is to combine local based information, quizzes, track visualization,
communication with buddies in cars on the same (or other) route, and similar “keep-the-kids-in-the-backseat-happy-and-active-with-some-meaningful-challenges”
activities.
An
AMMS application connected to various databases, like attractions, historical
information, etc. could be the backbone is such a system.
V. Been-There-Done-That
For real-life testing of
the AMMS concept, we have developed a framework called Been-There-Done-That.
The infrastructure consists of three main modules, as illustrated in Figure 3.
A client application runs on a smart phone linked to a Bluetooth GPS unit. Bluetooth
is a short-distance radio communication protocol (Kardach, 2000). The phone client assists the user in
composing annotated messages, and sends them to a server-side dispatcher. The dispatcher
processes the messages and stores the content for later use. Finally, the user
may access the stored messages through a web browser interface.
Figure 3: Been-There-Done-That architecture
The modules are relatively easy to implement,
and highly interchangeable, due to extensive use of open standards and specifications.
We give some details in the following sections.
Smart Phone
Client
The smart phone client provides an interface
where the user can compose and send annotated messages. The implementation
consists of two simple applications, an AMMS manager called BTDT and a location
acquisition program called Where. The software is implemented on a
Sony-Ericsson P900 (P900, 2003). This device runs the Symbian operating system,
and C++ is used as programming language.
BTDT
BTDT is responsible for
composing the annotated message and transferring it to the dispatcher. The user
may choose one of two methods for composing the message. In manual modus, the
user specifies the media elements (images, movie clips, audio recordings or text
notes) by browsing the file system, as illustrated in Figure 4. In order to
provide the spatiotemporal metadata, the user has to select a file that contains
the appropriate annotations.
Figure 4: Manual selection of multimedia
elements
The message may also be
generated in a more automatic way, which can be viewed as a recording session.
The user pushes the start button, and then generates the multimedia elements by
using the built-in standard applications (camera, camcorder, audio recorder).
The spatiotemporal annotations are created by the Where program (see next section).
When the user pushes the send button, the program traverses the file system on
the phone and retrieves all media files that have been created since the
application was started. The files can be text, images, sound or video,
depending on the media capabilities of the phone. This “two-click” process is
illustrated in Figure 5.
Figure 5: Message recording
When it comes to media
creation, different smart phones offer completely different services for both
users and developers, concerning available media types and types of multimedia
applications. By using such a simple method as checking the creation date of a
file and comparing it to the time when the application was started, one is able
to solve a set of complex problems concerning media retrieval across a variety
of platforms.
When the message composition is completed, it
is transferred to the dispatcher using a regular TCP/IP connection. On current
GSM-based phones, this transmission takes place by GPRS. The BTDT application
also provides functions for setting options such as the URL address of the dispatcher.
Where
The Where application is responsible for the
spatiotemporal component of the AMMS. The location can be specified by a place
name or as a point or track of geographic coordinates. Coordinates may be
provided either manually or from an optional Bluetooth GPS module. The program
may easily be extended to retrieve location information from other sources, such
as the network operator. Date and time of day is obtained either from the
operating system or from the GPS data. The application generates the
appropriate SMIL meta elements, and stores them in a text file. In the case
where a place name has been given as location, it is assumed that the dispatcher
or another component will use a gazetteer service to look up the geographic
position.
Dispatcher
The dispatcher works as a
server towards the smart phone clients and provides a central storage system for
the annotated messages. When a message arrives on the dispatcher, the content
is examined and processed according to a given set of rules. The positional data
is retrieved from the meta elements. If the location is specified as a textual description,
the geographic position is obtained by calling an external gazetteer service.
Then the Dispatcher examines each multimedia entry and associates a single
coordinate or a collection of coordinates (a track) with the submitted media.
The chosen method of transportation can be any
regular TCP/IP-connection. This provides us with a flexible interface
separating the dispatcher and the clients. In our case, a client is a smart
phone, but it could be any unit capable of generating an AMMS and sending it
over TCP/IP.
Browser
The browser is an online,
web based map interface where users may inspect and retrieve the content of the
messages stored in the repository. The main component is a zoomable and
clickable map of the world, where areas that have messages assigned to them are
highlighted. By clicking on a hot spot, the user is presented with a list of all
messages from that particular area. If there are several local areas with
information, they will be grouped into one larger area, depending on the size
of the current view in the browser. The users are then able to retrieve the information
they are looking for by simply selecting it from the list of available media. Predefined
areas of interest may be created in order to facilitate easy navigation. The
various elements of the browser are shown in Figure 6. Here the user has zoomed
in on some hotspots in Rome, and selected two images and a soundtrack from St.
Peter’s cathedral.
Figure 6: Message browsing
The background map is fetched from external
map servers using the Web Map Service (WMS) protocol (OGC, 2002). Hence, the
map creation process is completely separated from the rest of the
infrastructure. Further, it is easy to customize the map, either by choosing
another map service or request another set of layers. The browser is open for
public use (OneMap, 2004).
Lessons Learned
Been-There-Done-That have
been in use during a five months test period. Approximately one hundred AMMS
messages have been transmitted from various locations in Norway, Sweden and
Italy, using five different service providers. The operating conditions have
ranged from sitting indoors at a table to standing in an open fishing boat in
rough weather.
The smart phone client
has shown to be relatively stable, taking in account that it is a rapidly
developed prototype. During the field-testing, we learned that extreme
attention has to be paid to make the handset user interface as simple as
possible. A mobile user has neither the time nor the patience to interact with
a complex interface. Ideally, composing and sending AMMS messages should be as
easy as sending text messages.
The GPRS communication
has functioned very well on most occasions, even when sending messages in the
megabyte range. However, we have experienced that network speed varies greatly,
depending on operator, location and time.
The Bluetooth GPS has most
of the time been carried in a belt holster, and has worked satisfactory. When
starting the unit, it typically takes a minute or two to get a lock on the
required number of satellites. Problems have occurred in dense forests or in
city areas with tall buildings, a phenomenon, however, common for all GPS
receivers. We have experienced that the Bluetooth communication between the
phone and GPS unit has been slightly unstable, even when being very close (the
distance between Bluetooth devices should not exceed 10 meters).
The dispatcher module has been working
flawlessly during the test period, and so have the browser and the underlying
map services. Since we have paid little attention to implementing an efficient
and appealing user interface, this module would obviously benefit from improvements,
preferably based on extensive user centered research.
VI. Final Remarks
We have demonstrated that
it is simple and straightforward to extend the MMS format to include
spatiotemporal information, and have outlined how to include even richer
metadata. The proposed format, Annotated Multimedia Messaging Service (AMMS),
is fully MMS compatible according the current MMS conformance document. We have
also tested the concept successfully by implementing a test bed called
Been-There-Done-That.
It is worth noting that
the proposed annotation of mobile media content might have been formatted
differently and transmitted in other ways then in the context of the MMS
framework. However, we believe that incorporating the annotations in an
existing, well known and widely used format, offers significant benefits.
By extensive use of open
standards and specifications, in particular from the 3rd
Generation Partnership Project (3GPP) and Open
Geospatial Consortium (OGC), we have shown that it is easy for software and
content vendors to implement location aware solutions based on the AMMS
approach. Two students developed the core parts of the software in a half
semester project in their first year of their master’s program. The students
had no prior knowledge of mobile units, wireless protocols or geographic
information.
Currently,
there are several projects at Østfold University College aiming at extending
the work presented in this paper. We are in particular working on expanding the
metadata management by adopting the SMIL 2 specification, and leveraging
current research in semi-automatic metadata generation, as reported in (Davis,
et al., 2004; Naaman, et al., 2003; Naaman, et al., 2004a). In addition, we are
developing applications in the area of mobile gaming and collaborative mapping
(Section IV). We welcome comments, contributions and proposals for
collaboration. Source code and additional documentation are available on
request from the authors.
Acknowledgements
The work presented in this paper is part of Project
OneMap, a long-term effort contributing to the fusion of standard web
technologies and geographic content, often referred to as the GeoWeb (Misund,
et al., 2002; OneMap, 2004). The authors would like to thank the OneMap team
members for interesting discussions. We are grateful for the financial support
from Østfold University College. The work is partially based on the student
projects of Arne Enger Hansen (Hansen, 2004) and Christer Stenbrenden (Stenbrenden,
2004). One of the authors, Gunnar Misund, supervised them both.
References
[1] 3G (3G
Today), 2004, Over 132 million
reported 3G CDMA subscribers. http://www.3gtoday.com/subscribers/.
[2] 3GPP (The 3rd Generation Partnership
Project), 2003, 3GPP TS 23.140 Multimedia Messaging Service
(MMS); Functional description.
http://www.3gpp.org/ftp/Specs/archive/23_series/23.140/.
[3] Grace
Agnew, Markus Buchhorn, Dan Kniesner, Jean Hudgins, Douglas King, Mary-Frances
Panettiere and Manjula Patel, 2001, ViDe User's Guide: Dublin Core Application
Profile for Digital Video.
http://www.vide.net/workgroups/videoaccess/resources/vide_dc_userguide_20010909.pdf
[4] Blogger,
2004, blogger.com, 2004. http://www.blogger.com/about/.
[5] Neil
Chan, 2003, Introduction to
Location-Based Services. http://www.giscentrum.lu.se/www_summeruniversity/projects2003/Chan.pdf.
[6] CMG, Comverse, Sony Ericsson, Logica,
Motorola, Nokia and Siemens, 2002, MMS
Conformance Document Version 2.0.0.
http://www.ia.hiof.no/~gunnarmi/MMS_Conformance_v2_0_0.pdf.
[7] CNN
International, 2001, DoCoMo unveils
3G, with caution.
http://edition.cnn.com/2001/BUSINESS/asia/09/30/tokyo.docomo3Gdebut.
[8] Marc
Davis, Simon King, Nathan Good, and Risto Sarvas, 2004, From Context to
Content: Leveraging Context to Infer Media Metadata, Proceedings of 12th Annual ACM International Conference on Multimedia
(MM 2004). Forthcoming 2004.
http://fusion.sims.berkeley.edu/GarageCinema/pubs/pdf/pdf_63900590-3243-4FA0-845E4BF832AA8BCC.pdf
[9] DCMI
(The Dublin Core Metadata Initiative), 2003, Dublin Core Metadata Element
Set, Version 1.1: Reference Description. http://
dublincore.org/documents/dces/.
[10] FCC
(Federal Communications Commission), 2004, Enhanced 911. http://www.fcc.gov/911/enhanced.
[11] Emese
Gaal, 2001, Emese’s photo blog.
http://www.sciencemeetsart.com/emese/blog/.
[12] Hector
Garcia-Molina, 2004, BioAct!
http://shark.stanford.edu:4230/cgi-bin/flamenco/bio/Flamenco?username=default.
[13] GSM Association, 2004, SMS (Short Messaging Service). http://www.
gsmworld.com/technology/sms/index.shtml.
[14] Arne
Enger Hansen, 2004, A Location Bound
Media Client for Sony Ericsson P800/P900. Project
Report, Østfold University College, Faculty of Computer Sciences, Norway.
[15] Jason Harlan (Map Bureau), 2003, Blogmapper. http://www.blogmapper.com/.
[16] Stein Høseggen, 2004. Mobile gaming
based on tourist information. Personal communication.
[17] I3A
(International Imaging Industry Association), 2001, DIG35: Metadata – A smarter
way to look at digital images. http://www.i3a.org/i_dig35.html.
[18] ISO/IEC, 2002, ISO/IEC 15938: Multimedia
content description interface. Forthcoming 2004. http://www.iso.org.
[19] Joi
Ito, 2004, Joi Ito's Moblogging,
Blogmapping and Moblogmapping related resources. http://radio.weblogs.com/0114939/outlines/moblog.html.
[20] ITU
(International Telecommunication Union), 2004, Shaping he future mobile information society: The case of the Kingdom
of Norway.
http://www.itu.int/osg/spu/ni/futuremobile/general/casestudies/norwaycaseE.pdf.
[21] James
Kardach, 2000, Bluetooth Architecture, Intel Technology Journal, 2nd Quarter 2000.
http://www.intel.com/technology/itj/q22000/articles/art_1.htm.
[22]
Subrahmanyam Karuturi, 2002, What is SMS? http://www.funsms.net/what_is_sms.htm.
[23]
Bjørn Inge Langdahl, 2004, Registrering av nettfeil ved bruk av PDA og GPS fra helikopter. ItEnergi 2004 (in
Norwegian).
http://www.itenergi.com/2004/program/.
[24] Eric
Miller, 2004, The Semantic Web. http://www.w3.org/2004/Talks/0120-semweb-umich.
[25] Gunnar
Misund and Knut-Erik Johnsen, 2003, The OneMap
Project. http://www.ia.hiof.no/~gunnarmi/omd/gmldev_02/.
[26] Mor Naaman, Andreas Paepcke and Hector Garcia-Molina,
2003, From Where to What: Metadata Sharing for Digital Photographs with
Geographic Coordinates, Proceedings of
CoopIS/DOA/ODBASE 2003.
[27] Mor
Naaman, Susumu Harada, QianYing Wang, Hector Garcia-Molina and Andreas Paepcke,
2004, Context data in geo-referenced digital photo collections, Proceedings of the 12th annual ACM
international conference on Multimedia.
[28] M.
Naaman, S. Harada, Q. Wang, and A. Paepcke, 2004, Adventures in space and time:
Browsing personal collections of geo-referenced digital photographs. Technical report, Stanford University. Submitted
for Publication. http://dbpubs.stanford.edu:8090/pub/2004-26.
[29] NewBay
Software, 2003, FoneBlog - A Web Site
for Your Mobile Phone.
http://www.newbay.com/whitepapers/FoneBlog%201.0%20White%20Paper.pdf.
[30] Nokia,
2004, Nokia Lifeblog. http://www.nokia.com/nokia/0,1522,,00.html?orig=/lifeblog.
[31] OGC
(Open GIS Consortium, Inc.), 2002, Web
Map Service Implementation Specification (OGC 01-068r3).
http://www.opengis.org/docs/01-068r3.pdf.
[32] Project OneMap, 2002, Project OneMap. http://www.onemap.org.
[33] Project OneMap, 2004, Been-There-Done-That Browser.
http://www.onemap.org/ch/geometa/browse.
[34] J.
T. Oney, 2001, Wireless Protocols.
http://www.nvcc.edu/home/joney/Wireless%20Protocol.ppt.
[35] P900 (Sony Ericsson), 2003, P900
Overview.
http://www.sonyericsson.com/p900/index.htm.
[36] Petri Possi (UMTS World), 2004, UMTS / 3G History and Future Milestones.
http://www.umtsworld.com/umts/history.htm.
[37] Christer
Stenbrenden, 2004, A Location Bound
Media Server, Project Report, Østfold University College, Faculty of
Computer Sciences, Norway.
[38] Symbian
(Symbian Ltd.), 2004, Symbian OS - the
mobile operating system. http://www.symbian.com/.
[39] Kentaro
Toyama, Ron Logan, Asta Roseway and P. Anandan, 2003, Geographic Location Tags
on Digital Images, Proceedings of ACM Multimedia 2003,
http://wwmx.org/docs/wwmx_acm2003.pdf.
[40]
VG, 2004, MMS tar helt av. (in Norwegian) http://www.vg.no/pub/vgart.hbs?artid=251070.
[41] W3C
(World Wide Web Consortium), 2001, Synchronized
Multimedia Integration Language (SMIL 2.0). http://www.opengis.org/docs/01-068r3.pdf.
[42] Waag
Society, 2004, Amsterdam Realtime.
http://www.waag.org/realtime/.
[43] WaveMarket, 2003, WaveBlog. http://www.waveblog.com/.
